Sale!
Original price was: $75.00.$35.00Current price is: $35.00.

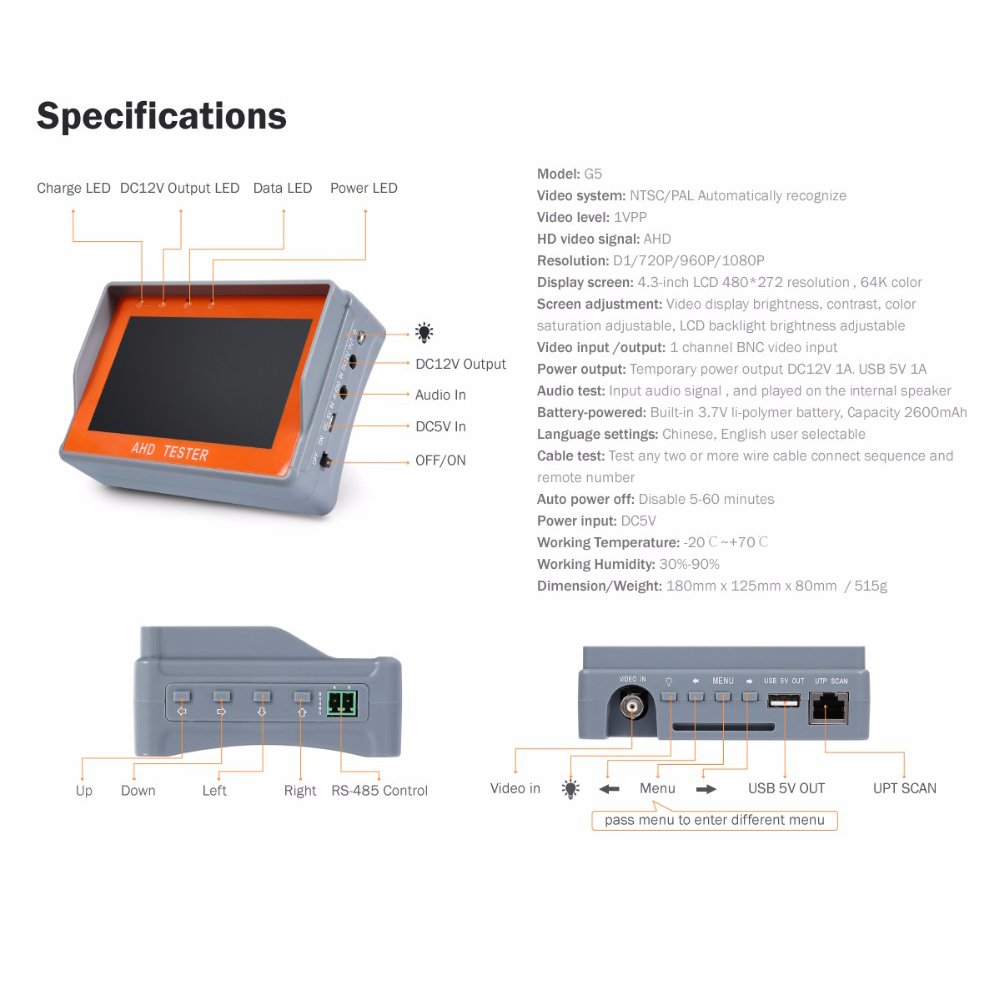

Specification:
SD Signal Format: NTSC,PAL
Video System: NTSC/PAL Automatically recognize
Video Level: 1VPP
Display Screen: 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
Screen Adjustment: Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable
Video Input / Output: 1 channel BNC Video IN
HD Video Signal: HD AHD
Resolution: D1,720P,960p 1080P
Signal Level: 1Vpp
Power Output: Temporary power output 12V 1A DC
USBX1 5V1A output
Audio Test: Input audio signal, and played on the internal speaker
External Power Supply: DC 5V(2A)
This model can’t support PTZ contorl. The device just work for AHD and Analog cameras.
8 in stock
Description
The new AHD Camera tester is developed for AHD camera device, with Video display, DC12v output power, Audio test, 480*272 resolution, and multilingual OSD. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field The new AHD Camera tester is developed for AHD camera device, with Video display, DC12v output power, Audio test, 480*272 resolution, and multilingual OSD. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field Package Included: 1 x Main Unit 1 x Audio cable 1 x Video cable 1 x 12V/1A output power cable 1 x 5V/1A USB cable 1 x US Power Plug 1 x English manualAdditional information
| Test | SAMPLE |
|---|
