Description

Troubleshoots

  ● IP camera can not be tested: This tester not supports any IP cameras testing, it can only be used to test analog cameras. ● The tester can not produce pictures: When the device is switched to CVI mode, only connected to CVI camera can it produce pictures. If the camera is other TVI / AHD signal camera, the mode should be switched to TVI / AHD signal correspondingly, so that the connected camera can produce pictures but not flicker. ● Must this be plugged in, in order to turn on or does the batteries need to be charged? This tester is built in battery, as long as the battery power is sufficient, you can turn it on normally, if not, that means that the battery power has been consumed, you need charge it, fully charge it and then you can unplug the power supply to use. ● HDMI isn’t recognized: If HDMI is used as the display input, it can only be connected to the NVR or DVR which with an input signal of HDMI. If HDMI is a signal output, it needs to be connected to the display or TV.

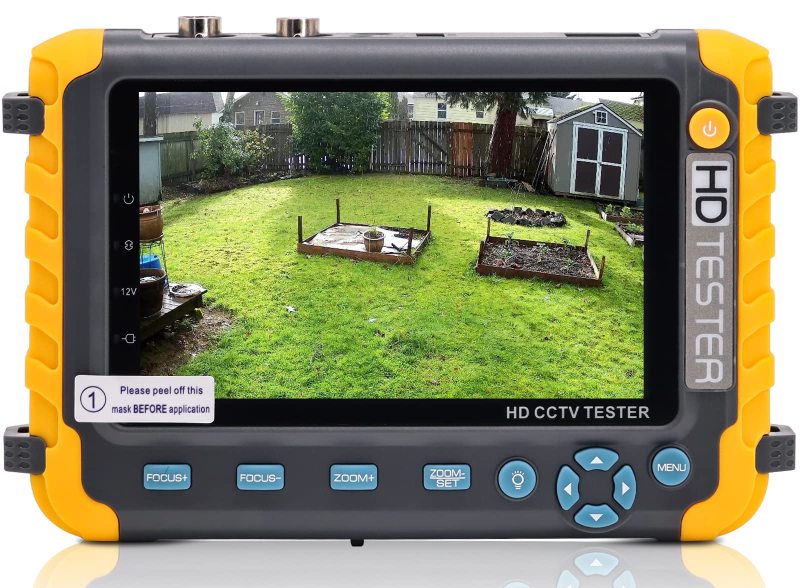

4 in 1 CCTV Tester(Not Support IP Cameras)

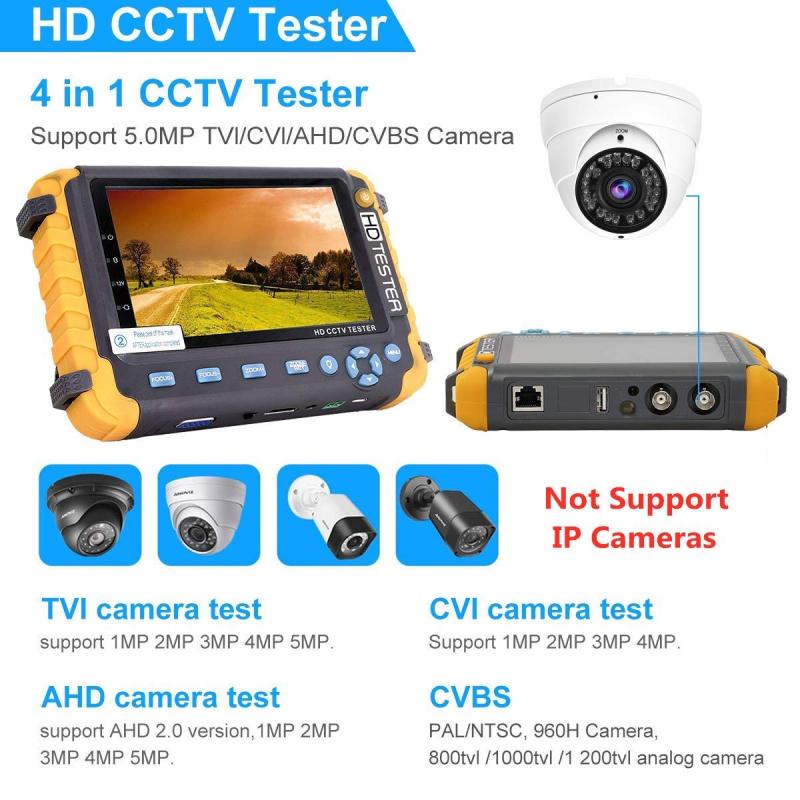

  Tips * To avoid the battery can’t charge next time. Don’t recharge it until the battery was completely used * This tester NOT supports IP Camera TVI camera test: HD TVI video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP. When TVI signal input, the tester will display HD TVI camera image. AHD camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP. When AHD signal input, the tester will display the AHD camera image. CVI camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP. When CVI signal input, the tester will display the CVI camera image. CVBS: PAL/NTSC, 960H Camera, 800tvl/1000tvl/1 200tvl analog camera

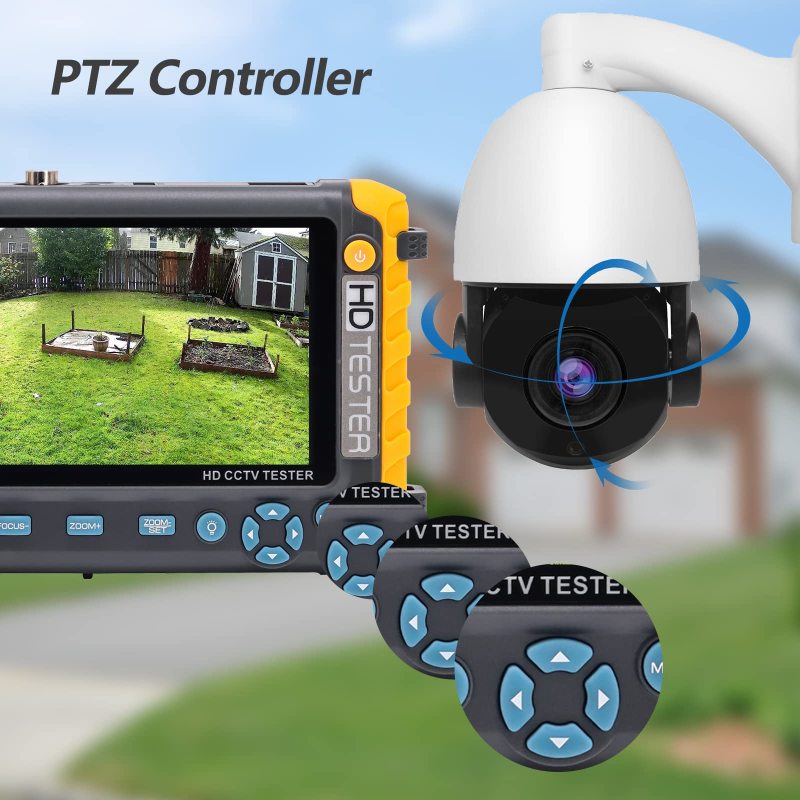

PTZ Controller

  Support RS485, compatible with protocols PELCO-D/P, you can control the rotation of PTZ, up or down, left or right, and you also can adjust zoom, focus, aperture size.

Rechargeable

  Power the camera with DC 12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Built-in 18650 2600mA battery, after charging 3-4 hours, working time lasts 11 hours.

Features

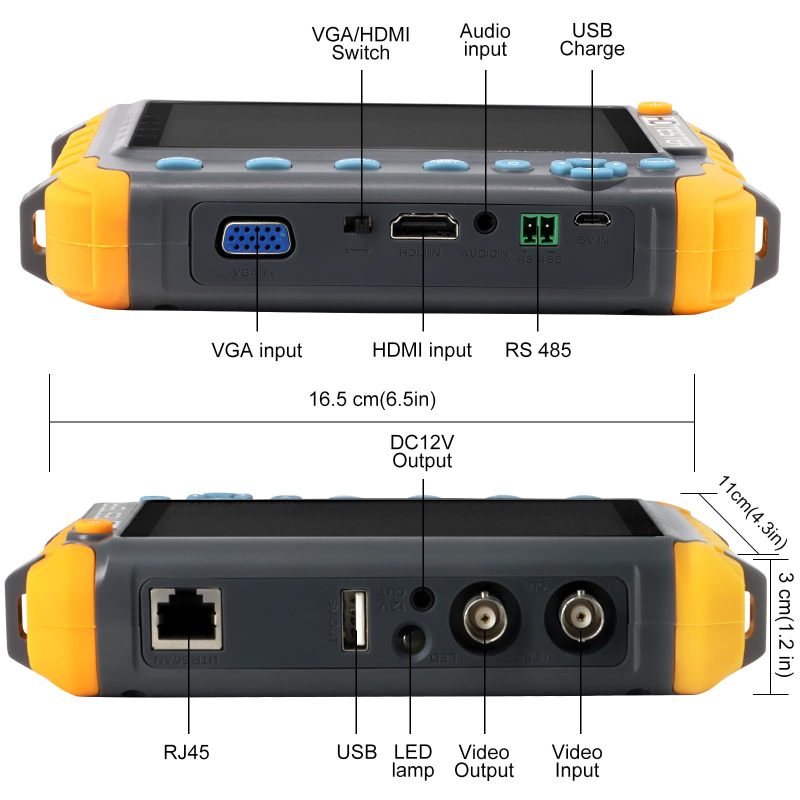

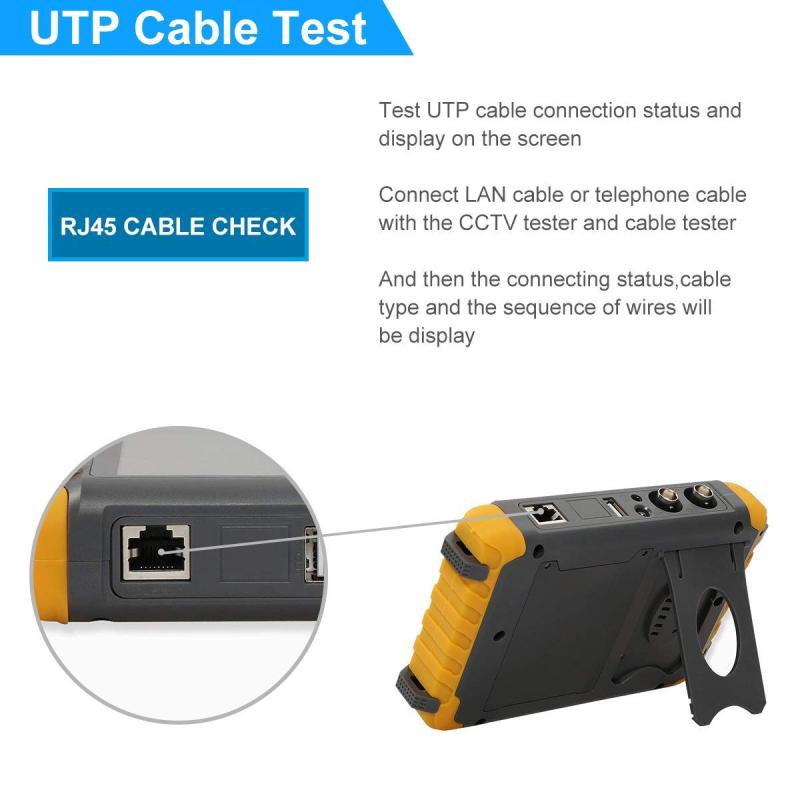

  Audio testing: Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. UTP cable test: Display UTP cable connection status, cable type and the sequence of wires as well as read the number of the test box. VGA/HDMI input: Support VGA/HDMI 1.1 Compliant Digital input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. * Auto power off: 1-30 (mins) * Working temperature: 14℉ ~ 122℉ (-10℃ ~ +50℃ ) * Humidity: 30%-90% Rh * Dimension: 221mm x 175mm x 91mm * Weight: 1.65lb (0.75kg) * Language settings: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

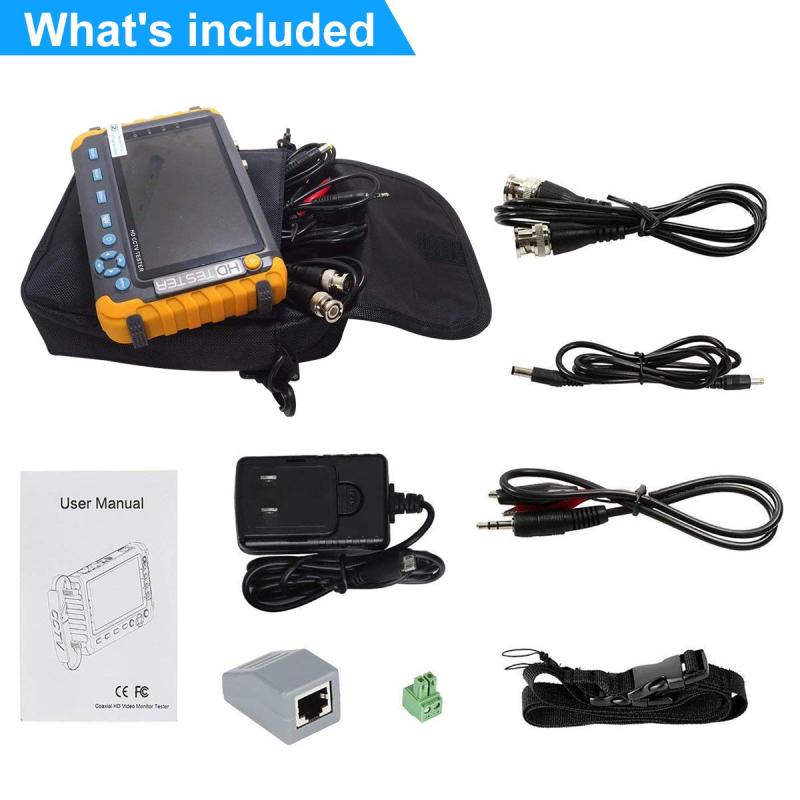

Product Accessories

  * Adapter DC5V 1.5A (with USB cable) *1 Power output conversion cable *1 * BNC cable *1 RS485 connector *1 * International Standard 18650 2600ma battery *2 Lanyard *1 * Tool bag *1 HD coaxial tester *1 * Instruction Manual *1 Audio cable *1
