Description

Features

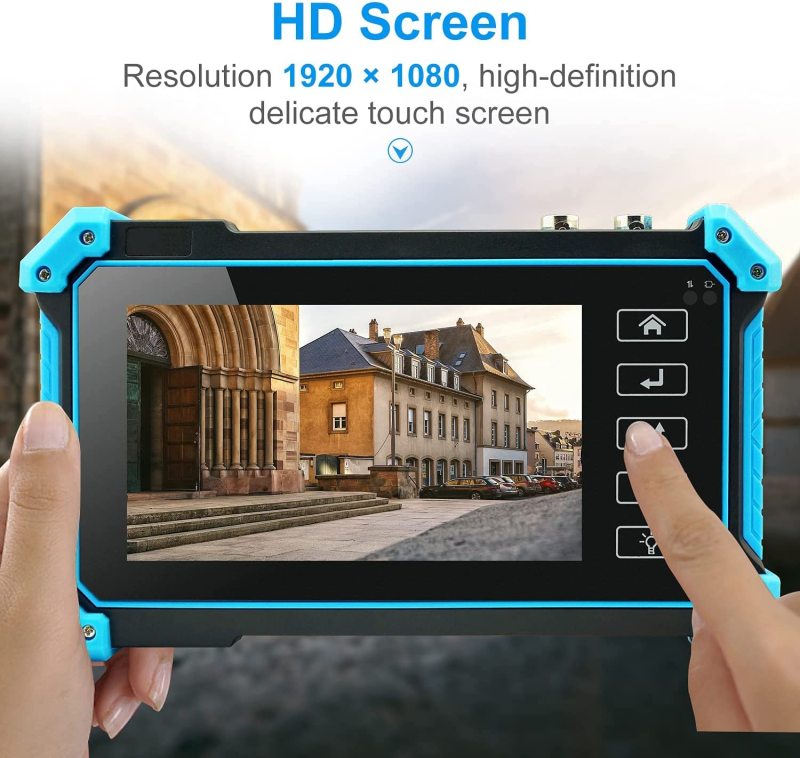

  The 5 inch IPS touch screen IP camera monitor is designed for maintenance and installation of IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as testing 4K H.264 /4K H.265 camera by mainstream, The 1920×1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. The combination of touch screen and key buttons make the IP camera tester very user- friendly.

SUPPORT CAMERA TYPE



IP camera test:

Max 8MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.

Coaxial HD camera test:

Max 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support UTC control and call OSD menu.

CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc.

AXIS IP cameras test：

Before testing, you need to install the APP “Axs test tool” suitable for AXIS testing through automatic update.

Rechargeable

  Power the camera with DC 12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Built-in 18650 2600mA battery, after charging 3-4 hours, working time lasts 11 hours.

Product Accessories
