Description

About this item

• 5 In 1 Tester Support Up to 8MP TVI/4MP CVI/5MP AHD Cameras test, Support H.265 & H .264 Up to 4K IP Camera test, Support CVBS camera test and PTZ control
• Rapid Network camera test, Auto log in and display image, create testing report, Support third parity camera test, enter IP Camera test app, input username and password to test, With IPC TEST, HIK test tool, DH test tool, IP discovery, just by one key to detect all network cameras IP address, Rapid video, just by one key to detect all network cameras and auto display
• DC12V 3A power output, PoE DC48V power output, Max power 24W, support 10/100/1000M Ethernet test, network state and traffic display, PING test, IP address scan, port flashing etc, With Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
• 4 inch touch screen, 800*480 resolutions, Wrist design, portable and easier to carry, 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts about 8 hours

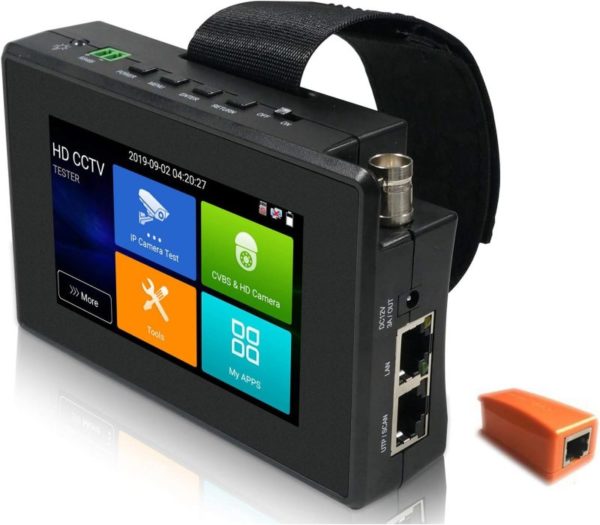

CCTV tester monitor

Cable test:

  ● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc Other functions: ● 10/100/1000M Ethernet, network state and traffic display ● Wrist design, portable and easier to carry ● TesterPlay: Tester, android version mobile phone, PC display at the same time ● Network tool: PING test, IP address scan, port flashing etc ● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc ● Self -update software, you can install apps with android version ● Media player, 4K video files and MKV/MP4 media files play ● Display its genuine resolution of the IP camera images ● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG ● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools ● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours Operation setting : OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Rj45 cable TDR test



Cable test:

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc ● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

Application:

  ● CCTV system installation and maintenance ● Network cabling project installation and maintenance ● Dome camera, 4K H.265 IP camera testing ● Video transmission channel testing ● PTZ controller Packing list 1*Tester(Built-in battery) 1*Adapter 1*BNC cable 1*RS485 connector 1*Power output conversion cable 1*Audio cabl
