Description

Features

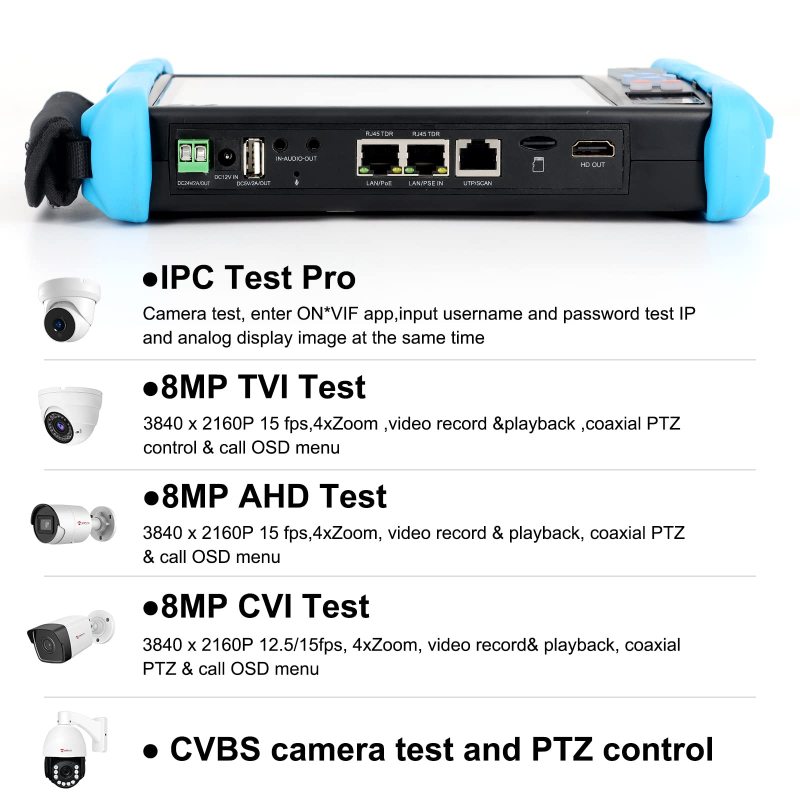

  Anpviz 7-inch Touch Screen CCTV camera tester 9800-Plus is a professional video surveillance camera testing device, mainly used in the process of monitoring camera maintenance, installation, and debugging. The tester has high resolution and color reproduction, which can help users view the monitoring image more clearly. It also provides various test functions, such as brightness, contrast, vertical bar noise, field frequency, etc., to help users comprehensively evaluate the performance of the monitoring system.

SUPPORT CAMERA TYPE



IP camera test:

Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/HDMI IN/Out/BNC interface/Cable Teacer/RS485 interface. Rapid Video: Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, on*vif test tool etc.

Coaxial HD camera test:

Max 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support UTC control and call OSD menu.

CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc.

Network tool & Cable Tracer:

With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables

PTZ Control

  Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. you can control the ratation of PTZ, up or down, left or right, and you also can adjust zoom, focus, aperture size.
